HIWIN Replacement KK Linear Module KK40 KK50 KK60 KK86 KK100 KK130 Guide Module
Guiding and drive systems can be flexibly selected for the Linear moduleThe areas of application range from miniature with a few grams up to heavy loads with several tons of handling mass. Stroke lengths and accessories can be configured individually.
The Linear Module Specifications
| Length of guide L2(mm) | Full length L1(mm) | Maximum stroke(mm) | G(mm) | n | Weight(kg) |
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat |
| 100 | 159 | 36 | - | 20 | 2 | 0.48 | - |
| 150 | 209 | 86 | 34 | 15 | 3 | 0.6 | 0.67 |
| 200 | 259 | 136 | 84 | 40 | 3 | 0.72 | 0.79 |
| Length of guide L2(mm) | Full length L1(mm) | Maximum stroke(mm) | G(mm) | K(mm) | n | m | Weight(kg) |
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat |
| 150 | 220 | 60 | - | 25 | 100 | 2 | 2 | 1.4 | - |
| 200 | 270 | 110 | - | 50 | 100 | 2 | 2 | 1.7 | - |
| 300 | 370 | 210 | 135 | 50 | 200 | 3 | 2 | 2.3 | 2.6 |
| 400 | 470 | 310 | 235 | 50 | 100 | 4 | 4 | 3.2 | 3.2 |
| 500 | 570 | 410 | 335 | 50 | 200 | 5 | 3 | 3.5 | 3.8 |
| 600 | 670 | 510 | 435 | 50 | 100 | 6 | 6 | 4.1 | 4.5 |

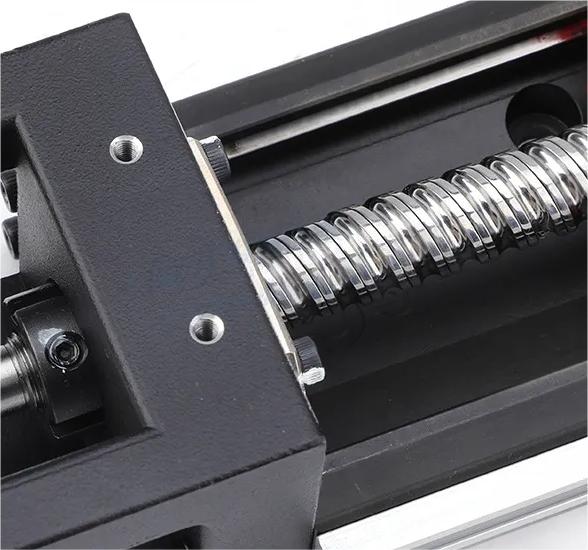

Linear Module Details Images
Use in multiple scenarios
Machining, lathes, automation equipment, etc Linear guide rail with high rigidity, long life, good resolution, easy installation
